create-vue 源码阅读
在 vue-cli 处于维护状态后，Vue 团队又发布了一个的全新脚手架工具 create-vue，用来帮助开发者快速创建一个基于 Vite 的 Vue 项目
create-vue The recommended way to start a Vite-powered Vue project

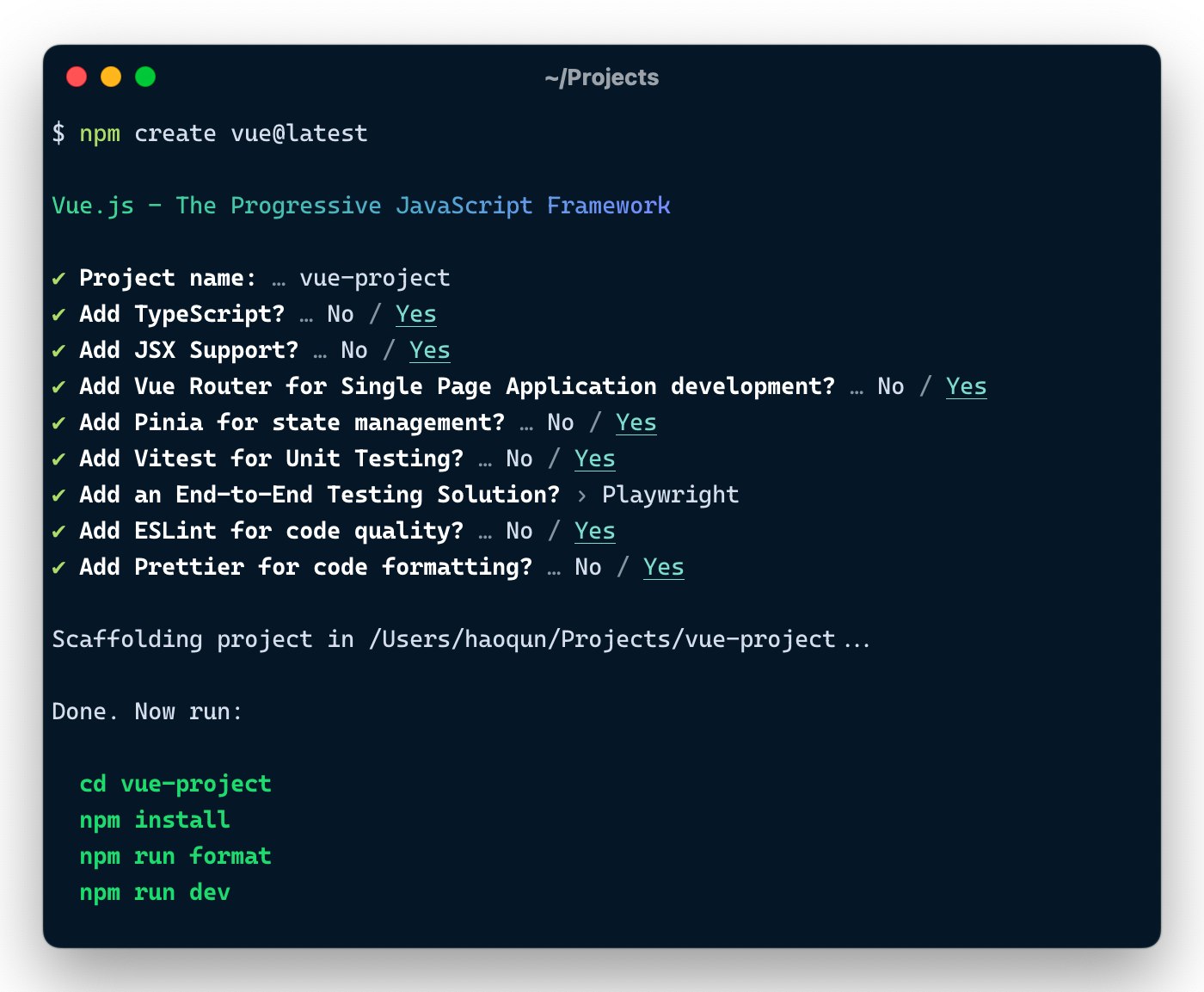

create-vue 使用方式
sh
npm create vue@latestnpm create 本质上是 npm init 的一个别名，所以上面的命令等价于 npm init vue@latest
在运行 npm init <name> 时，会检查是否存在 create-<name> 的包，如果存在，则会使用该包来初始化项目
create-vue 项目结构
sh
.
├── scripts # 脚本相关
│ ├── build.mjs # 构建脚本
│ ├── prepublish.mjs # 发布脚本
│ ├── snapshot.mjs # 快照脚本
│ └── test.mjs # 测试脚本
├── template # 模板文件
├── utils # 工具函数
├── index.ts # 入口文件
├── package.json
└── tsconfig.jsonscripts 目录
均使用
zx编写
build.mjs使用esbuild打包create-vue项目（输出outfile.cjs文件）prepublish.mjs发布create-vue项目- 运行
pnpm build - 运行
pnpm snapshot - 提交代码到
git
- 运行
snapshot.mjs生成快照（按各种配置进行排列组合，然后调用create-vue生成各种类型的vue脚手架工程，并将工程保存在playground文件夹中）test.mjs进入playground文件夹，然后运行test:e2e和test:unit测试脚本
create-vue 项目依赖
介绍主要依赖包的作用
zx：命令行脚本执行npm-run-all：并行执行 npm 脚本ejs：模板引擎esbuild：打包工具kolorist：修改终端输出颜色minimist：命令行参数解析prompts：命令行交互
create-vue 源码笔记
当前
create-vue源码版本为 v3.7.3
npm init vue@next 初始化项目的主要步骤
- 输入项目名称（默认值为
vue-project） - 询问配置，根据配置渲染对应模板
- 完成创建输出项目运行提示
index.ts 主流程
ts
#!/usr/bin/env node
import * as fs from 'node:fs'
import * as path from 'node:path'
import minimist from 'minimist'
import prompts from 'prompts'
import { red, green, bold } from 'kolorist'
import ejs from 'ejs'
import * as banners from './utils/banners'
import renderTemplate from './utils/renderTemplate'
import { postOrderDirectoryTraverse, preOrderDirectoryTraverse } from './utils/directoryTraverse'
import generateReadme from './utils/generateReadme'
import getCommand from './utils/getCommand'
import renderEslint from './utils/renderEslint'
import { FILES_TO_FILTER } from './utils/filterList'
// 校验用户输入的 packageName 是否合法
function isValidPackageName(projectName) {
return /^(?:@[a-z0-9-*~][a-z0-9-*._~]*\/)?[a-z0-9-~][a-z0-9-._~]*$/.test(projectName)
}
// 将 projectName 转换为合法的 packageName
function toValidPackageName(projectName) {
return projectName
.trim()
.toLowerCase()
.replace(/\s+/g, '-')
.replace(/^[._]/, '')
.replace(/[^a-z0-9-~]+/g, '-')
}
// 检查指定目录是否可以跳过清空（emptying）的操作
function canSkipEmptying(dir: string) {
if (!fs.existsSync(dir)) {
return true
}
const files = fs.readdirSync(dir)
if (files.length === 0) {
return true
}
if (files.length === 1 && files[0] === '.git') {
return true
}
return false
}
// 清空指定目录
function emptyDir(dir) {
if (!fs.existsSync(dir)) {
return
}
postOrderDirectoryTraverse(
dir,
(dir) => fs.rmdirSync(dir),
(file) => fs.unlinkSync(file)
)
}
/* 主流程 */
async function init() {
// 输出 banner
console.log()
console.log(
process.stdout.isTTY && process.stdout.getColorDepth() > 8
? banners.gradientBanner
: banners.defaultBanner
)
console.log()
const cwd = process.cwd()
/* options 介绍 */
// possible options:
// --default
// --typescript / --ts
// --jsx
// --router / --vue-router
// --pinia
// --with-tests / --tests (equals to `--vitest --cypress`)
// --vitest
// --cypress
// --nightwatch
// --playwright
// --eslint
// --eslint-with-prettier (only support prettier through eslint for simplicity)
// --force (for force overwriting)
// 解析命令行参数
const argv = minimist(process.argv.slice(2), {
alias: {
typescript: ['ts'],
'with-tests': ['tests'],
router: ['vue-router']
},
string: ['_'],
// all arguments are treated as booleans
boolean: true
})
// 如果设置了 feature flags 则跳过 prompts 询问
const isFeatureFlagsUsed =
typeof (
argv.default ??
argv.ts ??
argv.jsx ??
argv.router ??
argv.pinia ??
argv.tests ??
argv.vitest ??
argv.cypress ??
argv.nightwatch ??
argv.playwright ??
argv.eslint
) === 'boolean'
let targetDir = argv._[0]
// 默认为 vue-projects
const defaultProjectName = !targetDir ? 'vue-project' : targetDir
// 当同名文件夹存在时强制重写文件夹
const forceOverwrite = argv.force
let result: {
projectName?: string
shouldOverwrite?: boolean
packageName?: string
needsTypeScript?: boolean
needsJsx?: boolean
needsRouter?: boolean
needsPinia?: boolean
needsVitest?: boolean
needsE2eTesting?: false | 'cypress' | 'nightwatch' | 'playwright'
needsEslint?: boolean
needsPrettier?: boolean
} = {}
try {
// Prompts:
// - Project name:
// - whether to overwrite the existing directory or not?
// - enter a valid package name for package.json
// - Project language: JavaScript / TypeScript
// - Add JSX Support?
// - Install Vue Router for SPA development?
// - Install Pinia for state management?
// - Add Cypress for testing?
// - Add Nightwatch for testing?
// - Add Playwright for end-to-end testing?
// - Add ESLint for code quality?
// - Add Prettier for code formatting?
// 执行交互式询问
result = await prompts(
[
{
name: 'projectName',
type: targetDir ? null : 'text',
message: 'Project name:',
initial: defaultProjectName,
onState: (state) => (targetDir = String(state.value).trim() || defaultProjectName)
},
{
name: 'shouldOverwrite',
type: () => (canSkipEmptying(targetDir) || forceOverwrite ? null : 'confirm'),
message: () => {
const dirForPrompt =
targetDir === '.' ? 'Current directory' : `Target directory "${targetDir}"`
return `${dirForPrompt} is not empty. Remove existing files and continue?`
}
},
{
name: 'overwriteChecker',
type: (prev, values) => {
if (values.shouldOverwrite === false) {
throw new Error(red('✖') + ' Operation cancelled')
}
return null
}
},
{
name: 'packageName',
type: () => (isValidPackageName(targetDir) ? null : 'text'),
message: 'Package name:',
initial: () => toValidPackageName(targetDir),
validate: (dir) => isValidPackageName(dir) || 'Invalid package.json name'
},
{
name: 'needsTypeScript',
type: () => (isFeatureFlagsUsed ? null : 'toggle'),
message: 'Add TypeScript?',
initial: false,
active: 'Yes',
inactive: 'No'
},
{
name: 'needsJsx',
type: () => (isFeatureFlagsUsed ? null : 'toggle'),
message: 'Add JSX Support?',
initial: false,
active: 'Yes',
inactive: 'No'
},
{
name: 'needsRouter',
type: () => (isFeatureFlagsUsed ? null : 'toggle'),
message: 'Add Vue Router for Single Page Application development?',
initial: false,
active: 'Yes',
inactive: 'No'
},
{
name: 'needsPinia',
type: () => (isFeatureFlagsUsed ? null : 'toggle'),
message: 'Add Pinia for state management?',
initial: false,
active: 'Yes',
inactive: 'No'
},
{
name: 'needsVitest',
type: () => (isFeatureFlagsUsed ? null : 'toggle'),
message: 'Add Vitest for Unit Testing?',
initial: false,
active: 'Yes',
inactive: 'No'
},
{
name: 'needsE2eTesting',
type: () => (isFeatureFlagsUsed ? null : 'select'),
message: 'Add an End-to-End Testing Solution?',
initial: 0,
choices: (prev, answers) => [
{ title: 'No', value: false },
{
title: 'Cypress',
description: answers.needsVitest
? undefined
: 'also supports unit testing with Cypress Component Testing',
value: 'cypress'
},
{
title: 'Nightwatch',
description: answers.needsVitest
? undefined
: 'also supports unit testing with Nightwatch Component Testing',
value: 'nightwatch'
},
{
title: 'Playwright',
value: 'playwright'
}
]
},
{
name: 'needsEslint',
type: () => (isFeatureFlagsUsed ? null : 'toggle'),
message: 'Add ESLint for code quality?',
initial: false,
active: 'Yes',
inactive: 'No'
},
{
name: 'needsPrettier',
type: (prev, values) => {
if (isFeatureFlagsUsed || !values.needsEslint) {
return null
}
return 'toggle'
},
message: 'Add Prettier for code formatting?',
initial: false,
active: 'Yes',
inactive: 'No'
}
],
{
onCancel: () => {
throw new Error(red('✖') + ' Operation cancelled')
}
}
)
} catch (cancelled) {
console.log(cancelled.message)
process.exit(1)
}
// `initial` won't take effect if the prompt type is null
// so we still have to assign the default values here
const {
projectName,
packageName = projectName ?? defaultProjectName,
shouldOverwrite = argv.force,
needsJsx = argv.jsx,
needsTypeScript = argv.typescript,
needsRouter = argv.router,
needsPinia = argv.pinia,
needsVitest = argv.vitest || argv.tests,
needsEslint = argv.eslint || argv['eslint-with-prettier'],
needsPrettier = argv['eslint-with-prettier']
} = result
const { needsE2eTesting } = result
const needsCypress = argv.cypress || argv.tests || needsE2eTesting === 'cypress'
const needsCypressCT = needsCypress && !needsVitest
const needsNightwatch = argv.nightwatch || needsE2eTesting === 'nightwatch'
const needsNightwatchCT = needsNightwatch && !needsVitest
const needsPlaywright = argv.playwright || needsE2eTesting === 'playwright'
const root = path.join(cwd, targetDir)
if (fs.existsSync(root) && shouldOverwrite) {
emptyDir(root)
} else if (!fs.existsSync(root)) {
fs.mkdirSync(root)
}
// 提示 project 目录
console.log(`\nScaffolding project in ${root}...`)
// 生成 package.json 文件
const pkg = { name: packageName, version: '0.0.0' }
fs.writeFileSync(path.resolve(root, 'package.json'), JSON.stringify(pkg, null, 2))
// todo:
// work around the esbuild issue that `import.meta.url` cannot be correctly transpiled
// when bundling for node and the format is cjs
// const templateRoot = new URL('./template', import.meta.url).pathname
const templateRoot = path.resolve(__dirname, 'template') // 获取模板根目录
const callbacks = []
const render = function render(templateName) {
const templateDir = path.resolve(templateRoot, templateName)
renderTemplate(templateDir, root, callbacks)
}
// Render base template
render('base')
// 根据配置项添加配置
if (needsJsx) {
render('config/jsx')
}
if (needsRouter) {
render('config/router')
}
if (needsPinia) {
render('config/pinia')
}
if (needsVitest) {
render('config/vitest')
}
if (needsCypress) {
render('config/cypress')
}
if (needsCypressCT) {
render('config/cypress-ct')
}
if (needsNightwatch) {
render('config/nightwatch')
}
if (needsNightwatchCT) {
render('config/nightwatch-ct')
}
if (needsPlaywright) {
render('config/playwright')
}
if (needsTypeScript) {
render('config/typescript')
// Render tsconfigs
render('tsconfig/base')
if (needsCypress) {
render('tsconfig/cypress')
}
if (needsCypressCT) {
render('tsconfig/cypress-ct')
}
if (needsPlaywright) {
render('tsconfig/playwright')
}
if (needsVitest) {
render('tsconfig/vitest')
}
if (needsNightwatch) {
render('tsconfig/nightwatch')
}
if (needsNightwatchCT) {
render('tsconfig/nightwatch-ct')
}
}
// Render ESLint config
if (needsEslint) {
renderEslint(root, { needsTypeScript, needsCypress, needsCypressCT, needsPrettier })
}
// Render code template.
// prettier-ignore
const codeTemplate =
(needsTypeScript ? 'typescript-' : '') +
(needsRouter ? 'router' : 'default')
render(`code/${codeTemplate}`)
// Render entry file (main.js/ts).
if (needsPinia && needsRouter) {
render('entry/router-and-pinia')
} else if (needsPinia) {
render('entry/pinia')
} else if (needsRouter) {
render('entry/router')
} else {
render('entry/default')
}
// An external data store for callbacks to share data
const dataStore = {}
// Process callbacks
for (const cb of callbacks) {
await cb(dataStore)
}
// 渲染 ejs 模板
preOrderDirectoryTraverse(
root,
() => {},
(filepath) => {
if (filepath.endsWith('.ejs')) {
const template = fs.readFileSync(filepath, 'utf-8')
const dest = filepath.replace(/\.ejs$/, '')
const content = ejs.render(template, dataStore[dest])
fs.writeFileSync(dest, content)
fs.unlinkSync(filepath)
}
}
)
// Cleanup.
// We try to share as many files between TypeScript and JavaScript as possible.
// If that's not possible, we put `.ts` version alongside the `.js` one in the templates.
// So after all the templates are rendered, we need to clean up the redundant files.
// (Currently it's only `cypress/plugin/index.ts`, but we might add more in the future.)
// (Or, we might completely get rid of the plugins folder as Cypress 10 supports `cypress.config.ts`)
// 当配置了 TypeScript 时，将 js 文件转换为 ts 文件
if (needsTypeScript) {
// Convert the JavaScript template to the TypeScript
// Check all the remaining `.js` files:
// - If the corresponding TypeScript version already exists, remove the `.js` version.
// - Otherwise, rename the `.js` file to `.ts`
// Remove `jsconfig.json`, because we already have tsconfig.json
// `jsconfig.json` is not reused, because we use solution-style `tsconfig`s, which are much more complicated.
preOrderDirectoryTraverse(
root,
() => {},
(filepath) => {
if (filepath.endsWith('.js') && !FILES_TO_FILTER.includes(path.basename(filepath))) {
const tsFilePath = filepath.replace(/\.js$/, '.ts')
if (fs.existsSync(tsFilePath)) {
fs.unlinkSync(filepath)
} else {
fs.renameSync(filepath, tsFilePath)
}
} else if (path.basename(filepath) === 'jsconfig.json') {
fs.unlinkSync(filepath)
}
}
)
const indexHtmlPath = path.resolve(root, 'index.html')
const indexHtmlContent = fs.readFileSync(indexHtmlPath, 'utf8')
fs.writeFileSync(indexHtmlPath, indexHtmlContent.replace('src/main.js', 'src/main.ts'))
} else {
// Remove all the remaining `.ts` files
preOrderDirectoryTraverse(
root,
() => {},
(filepath) => {
if (filepath.endsWith('.ts')) {
fs.unlinkSync(filepath)
}
}
)
}
// 获取当前终端正在使用的包管理工具
const userAgent = process.env.npm_config_user_agent ?? ''
const packageManager = /pnpm/.test(userAgent) ? 'pnpm' : /yarn/.test(userAgent) ? 'yarn' : 'npm'
// 生成 README.md
fs.writeFileSync(
path.resolve(root, 'README.md'),
generateReadme({
projectName: result.projectName ?? result.packageName ?? defaultProjectName,
packageManager,
needsTypeScript,
needsVitest,
needsCypress,
needsNightwatch,
needsPlaywright,
needsNightwatchCT,
needsCypressCT,
needsEslint
})
)
console.log(`\nDone. Now run:\n`)
// 输出项目命令提示
if (root !== cwd) {
const cdProjectName = path.relative(cwd, root)
console.log(
` ${bold(green(`cd ${cdProjectName.includes(' ') ? `"${cdProjectName}"` : cdProjectName}`))}`
)
}
console.log(` ${bold(green(getCommand(packageManager, 'install')))}`)
if (needsPrettier) {
console.log(` ${bold(green(getCommand(packageManager, 'format')))}`)
}
console.log(` ${bold(green(getCommand(packageManager, 'dev')))}`)
console.log()
}
init().catch((e) => {
console.error(e)
})工具函数
在 create-vue 项目中，有一些工具函数，这些函数都放在 utils 目录下
banners.ts
生成渐变色的 banner
ts
const defaultBanner = 'Vue.js - The Progressive JavaScript Framework'
// generated by the following code:
//
// require('gradient-string')([
// { color: '#42d392', pos: 0 },
// { color: '#42d392', pos: 0.1 },
// { color: '#647eff', pos: 1 }
// ])('Vue.js - The Progressive JavaScript Framework'))
//
// Use the output directly here to keep the bundle small.
const gradientBanner =
'\x1B[38;2;66;211;146mV\x1B[39m\x1B[38;2;66;211;146mu\x1B[39m\x1B[38;2;66;211;146me\x1B[39m\x1B[38;2;66;211;146m.\x1B[39m\x1B[38;2;66;211;146mj\x1B[39m\x1B[38;2;67;209;149ms\x1B[39m \x1B[38;2;68;206;152m-\x1B[39m \x1B[38;2;69;204;155mT\x1B[39m\x1B[38;2;70;201;158mh\x1B[39m\x1B[38;2;71;199;162me\x1B[39m \x1B[38;2;72;196;165mP\x1B[39m\x1B[38;2;73;194;168mr\x1B[39m\x1B[38;2;74;192;171mo\x1B[39m\x1B[38;2;75;189;174mg\x1B[39m\x1B[38;2;76;187;177mr\x1B[39m\x1B[38;2;77;184;180me\x1B[39m\x1B[38;2;78;182;183ms\x1B[39m\x1B[38;2;79;179;186ms\x1B[39m\x1B[38;2;80;177;190mi\x1B[39m\x1B[38;2;81;175;193mv\x1B[39m\x1B[38;2;82;172;196me\x1B[39m \x1B[38;2;83;170;199mJ\x1B[39m\x1B[38;2;83;167;202ma\x1B[39m\x1B[38;2;84;165;205mv\x1B[39m\x1B[38;2;85;162;208ma\x1B[39m\x1B[38;2;86;160;211mS\x1B[39m\x1B[38;2;87;158;215mc\x1B[39m\x1B[38;2;88;155;218mr\x1B[39m\x1B[38;2;89;153;221mi\x1B[39m\x1B[38;2;90;150;224mp\x1B[39m\x1B[38;2;91;148;227mt\x1B[39m \x1B[38;2;92;145;230mF\x1B[39m\x1B[38;2;93;143;233mr\x1B[39m\x1B[38;2;94;141;236ma\x1B[39m\x1B[38;2;95;138;239mm\x1B[39m\x1B[38;2;96;136;243me\x1B[39m\x1B[38;2;97;133;246mw\x1B[39m\x1B[38;2;98;131;249mo\x1B[39m\x1B[38;2;99;128;252mr\x1B[39m\x1B[38;2;100;126;255mk\x1B[39m'
export { defaultBanner, gradientBanner }deepMerge
在源码中使用 deepMerge 对 package.json 中的字段进行合并
ts
const isObject = (val) => val && typeof val === 'object'
const mergeArrayWithDedupe = (a, b) => Array.from(new Set([...a, ...b]))
/**
* Recursively merge the content of the new object to the existing one
* @param {Object} target the existing object
* @param {Object} obj the new object
*/
function deepMerge(target, obj) {
for (const key of Object.keys(obj)) {
const oldVal = target[key]
const newVal = obj[key]
if (Array.isArray(oldVal) && Array.isArray(newVal)) {
target[key] = mergeArrayWithDedupe(oldVal, newVal)
} else if (isObject(oldVal) && isObject(newVal)) {
target[key] = deepMerge(oldVal, newVal)
} else {
target[key] = newVal
}
}
return target
}
export default deepMergedirectoryTraverse
遍历目录下的所有文件和子目录，并在遍历的过程中调用提供的回调函数 dirCallback 和 fileCallback 处理目录和文件
ts
import * as fs from 'node:fs'
import * as path from 'node:path'
// 先处理当前目录
export function preOrderDirectoryTraverse(dir, dirCallback, fileCallback) {
for (const filename of fs.readdirSync(dir)) {
if (filename === '.git') {
continue
}
const fullpath = path.resolve(dir, filename)
if (fs.lstatSync(fullpath).isDirectory()) {
dirCallback(fullpath)
// in case the dirCallback removes the directory entirely
if (fs.existsSync(fullpath)) {
preOrderDirectoryTraverse(fullpath, dirCallback, fileCallback)
}
continue
}
fileCallback(fullpath)
}
}
// 先处理子目录
export function postOrderDirectoryTraverse(dir, dirCallback, fileCallback) {
for (const filename of fs.readdirSync(dir)) {
if (filename === '.git') {
continue
}
const fullpath = path.resolve(dir, filename)
if (fs.lstatSync(fullpath).isDirectory()) {
postOrderDirectoryTraverse(fullpath, dirCallback, fileCallback)
dirCallback(fullpath)
continue
}
fileCallback(fullpath)
}
}renderTemplate
渲染模板（将模板文件夹/文件复制到目标文件夹）
ts
import * as fs from 'node:fs'
import * as path from 'node:path'
import { pathToFileURL } from 'node:url'
import deepMerge from './deepMerge'
import sortDependencies from './sortDependencies'
/**
* Renders a template folder/file to the file system,
* by recursively copying all files under the `src` directory,
* with the following exception:
* - `_filename` should be renamed to `.filename`
* - Fields in `package.json` should be recursively merged
* @param {string} src source filename to copy
* @param {string} dest destination filename of the copy operation
*/
function renderTemplate(
src, // 模板路径
dest, // 项目路径
callbacks,
) {
const stats = fs.statSync(src)
if (stats.isDirectory()) {
// 跳过 node_modules 目录
if (path.basename(src) === 'node_modules') {
return
}
// 对目录进行递归处理
fs.mkdirSync(dest, { recursive: true })
for (const file of fs.readdirSync(src)) {
renderTemplate(path.resolve(src, file), path.resolve(dest, file), callbacks)
}
return
}
const filename = path.basename(src)
// 处理 package.json
if (filename === 'package.json' && fs.existsSync(dest)) {
// merge instead of overwriting
const existing = JSON.parse(fs.readFileSync(dest, 'utf8'))
const newPackage = JSON.parse(fs.readFileSync(src, 'utf8'))
const pkg = sortDependencies(deepMerge(existing, newPackage))
fs.writeFileSync(dest, JSON.stringify(pkg, null, 2) + '\n')
return
}
// 处理 extensions.json
if (filename === 'extensions.json' && fs.existsSync(dest)) {
// merge instead of overwriting
const existing = JSON.parse(fs.readFileSync(dest, 'utf8'))
const newExtensions = JSON.parse(fs.readFileSync(src, 'utf8'))
const extensions = deepMerge(existing, newExtensions)
fs.writeFileSync(dest, JSON.stringify(extensions, null, 2) + '\n')
return
}
// 将 _filename 重命名为 .filename
if (filename.startsWith('_')) {
// rename `_file` to `.file`
dest = path.resolve(path.dirname(dest), filename.replace(/^_/, '.'))
}
// 处理 .gitignore
if (filename === '_gitignore' && fs.existsSync(dest)) {
// append to existing .gitignore
const existing = fs.readFileSync(dest, 'utf8')
const newGitignore = fs.readFileSync(src, 'utf8')
fs.writeFileSync(dest, existing + '\n' + newGitignore)
return
}
// data file for EJS templates
if (filename.endsWith('.data.mjs')) {
// use dest path as key for the data store
dest = dest.replace(/\.data\.mjs$/, '')
// Add a callback to the array for late usage when template files are being processed
callbacks.push(async (dataStore) => {
const getData = (await import(pathToFileURL(src).toString())).default
// Though current `getData` are all sync, we still retain the possibility of async
dataStore[dest] = await getData({
oldData: dataStore[dest] || {},
})
})
return // skip copying the data file
}
// 复制文件
fs.copyFileSync(src, dest)
}
export default renderTemplatesortDependencies
对 package.json 中的依赖进行排序
ts
export default function sortDependencies(packageJson) {
const sorted = {}
const depTypes = ['dependencies', 'devDependencies', 'peerDependencies', 'optionalDependencies']
for (const depType of depTypes) {
if (packageJson[depType]) {
sorted[depType] = {}
Object.keys(packageJson[depType])
.sort()
.forEach((name) => {
sorted[depType][name] = packageJson[depType][name]
})
}
}
return {
...packageJson,
...sorted,
}
}
